Circular Attachment Plate
EN 14917 K.8.2 · 3 or more tie-bars · Valid up to DN 800
1
Force Definition
Pressure Conditions
Force Results
No force result yet.
2
Material Properties
Material Selection
Material Results
No material result yet.
3
K.8.2.1 Stress in Plate — Geometry and Calculation

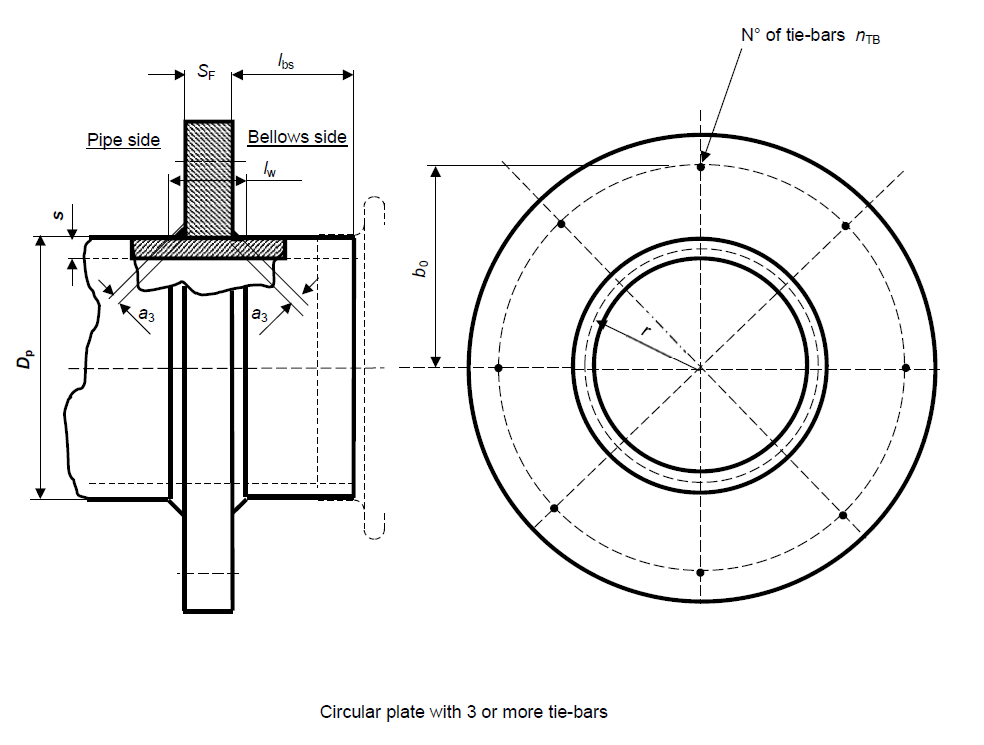

Figure K.8-6 — Stress in Circular Plate
Plate stress check uses MBRa, Mφa, Bs, CBR, k4, k5, k6 and CnTB. Enter the geometry directly in this K.8.2.1 block.
Geometry Inputs
Plate Stress Results
No plate stress result yet.
5
K.8.2.2 Stress in Pipe
Calculates the bellows-side and pipe-side total and primary stresses according to K.8.2.2.
No pipe stress result yet.
6
K.8.2.3 Stress in the Weld Plate/Pipe
Figure K.8-6 — Weld Detail
Weld stress uses a3, Fp and the QB/QP shear result from K.8.2.2.
Weld Stress Results
No weld stress result yet.
